ARC

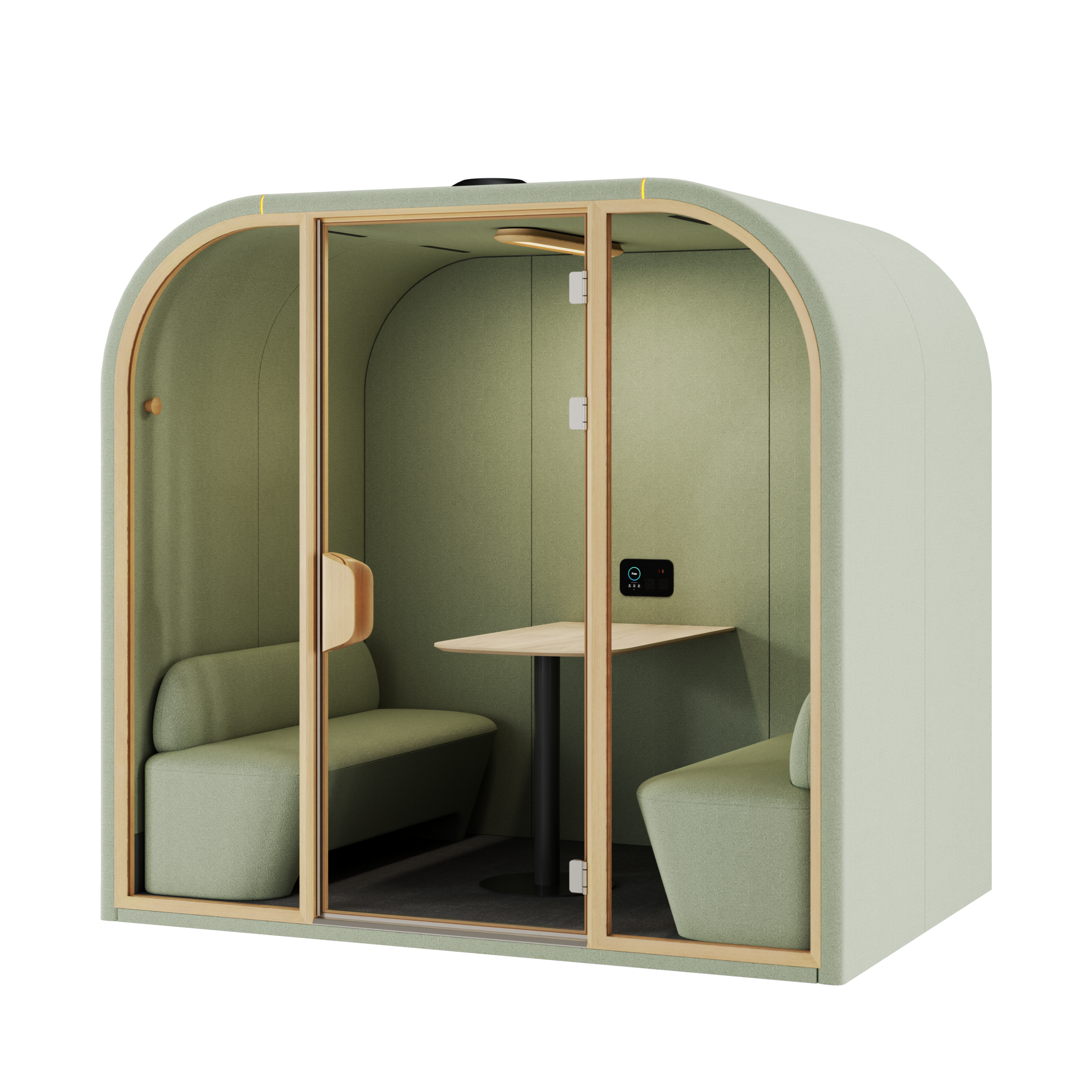

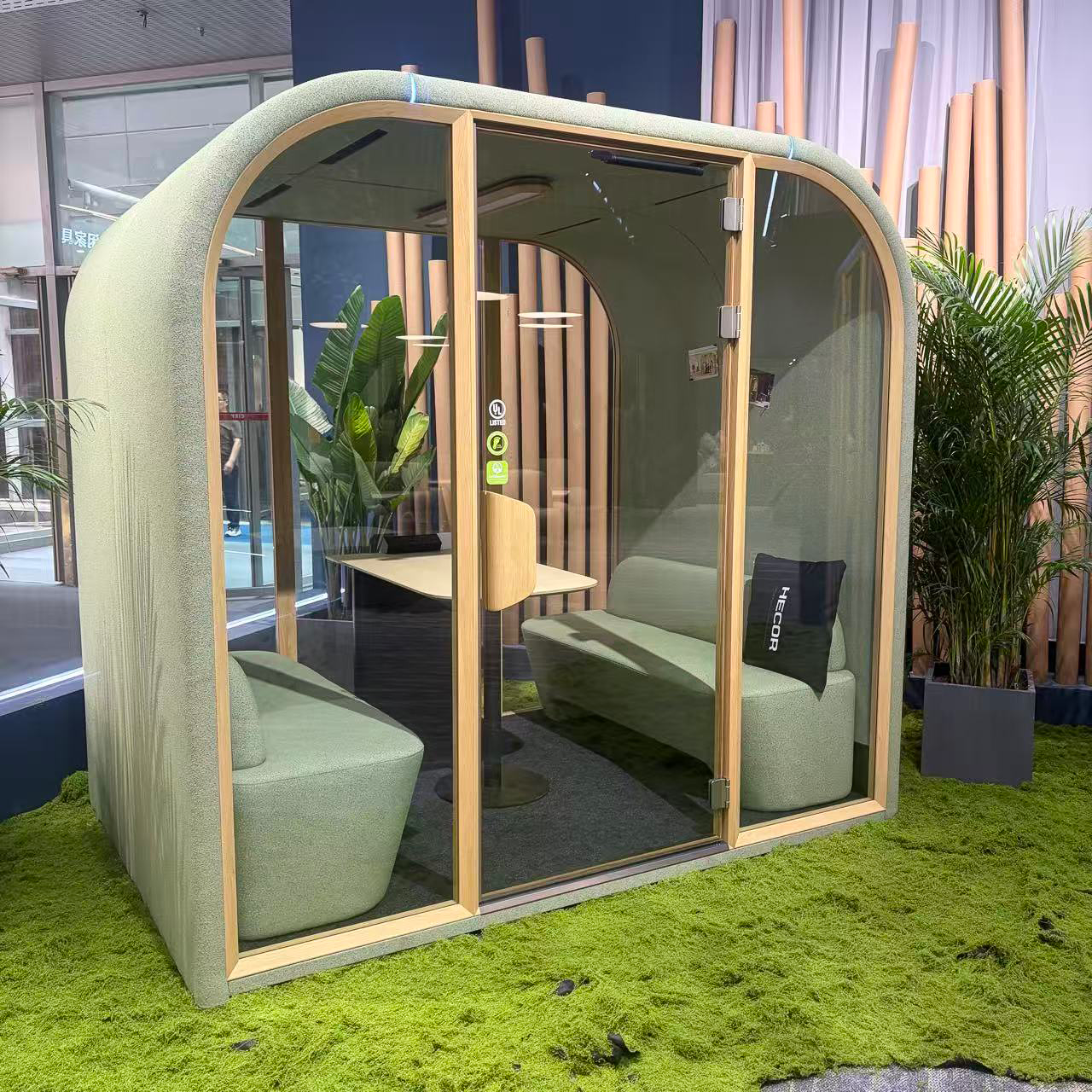

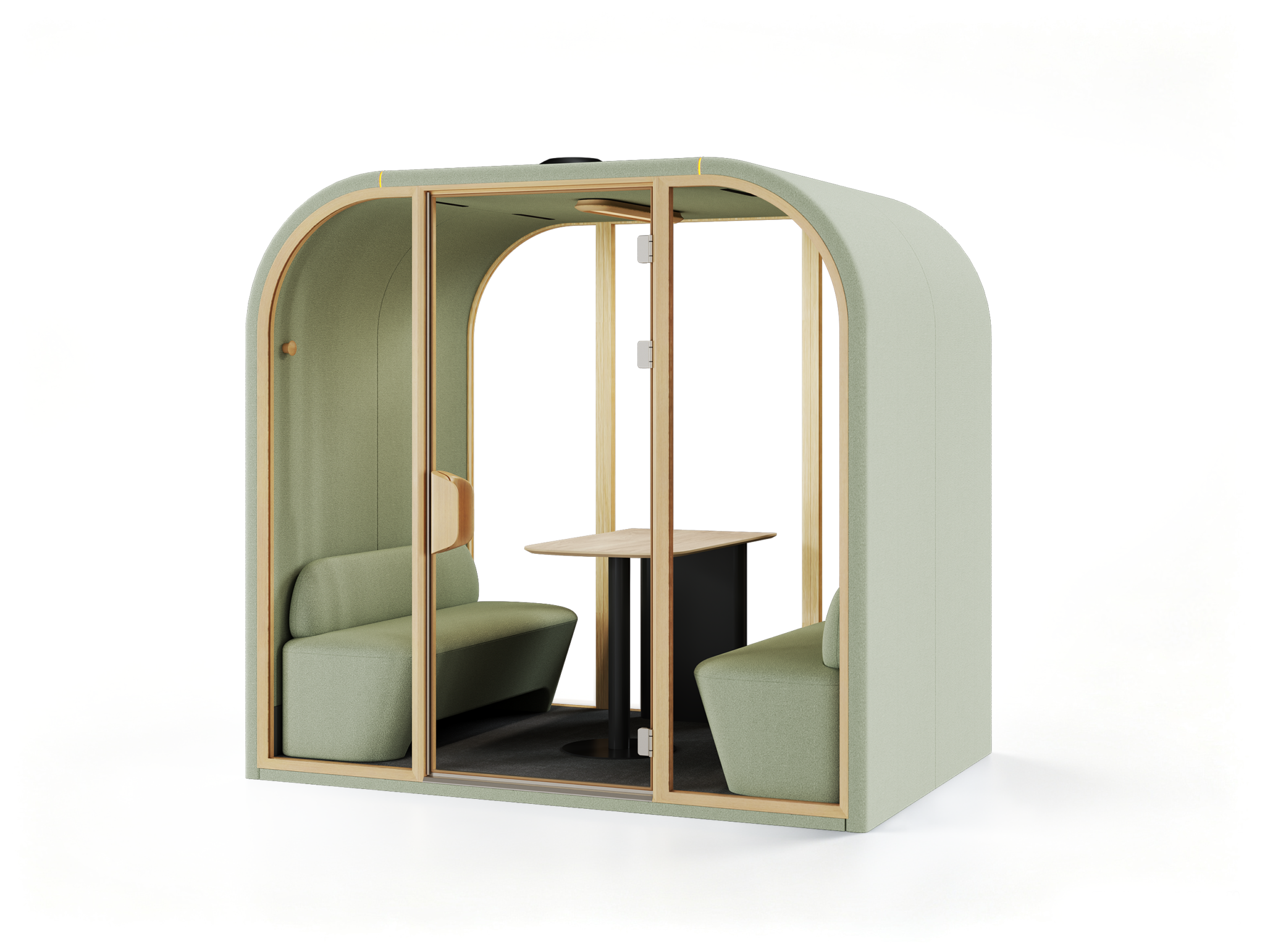

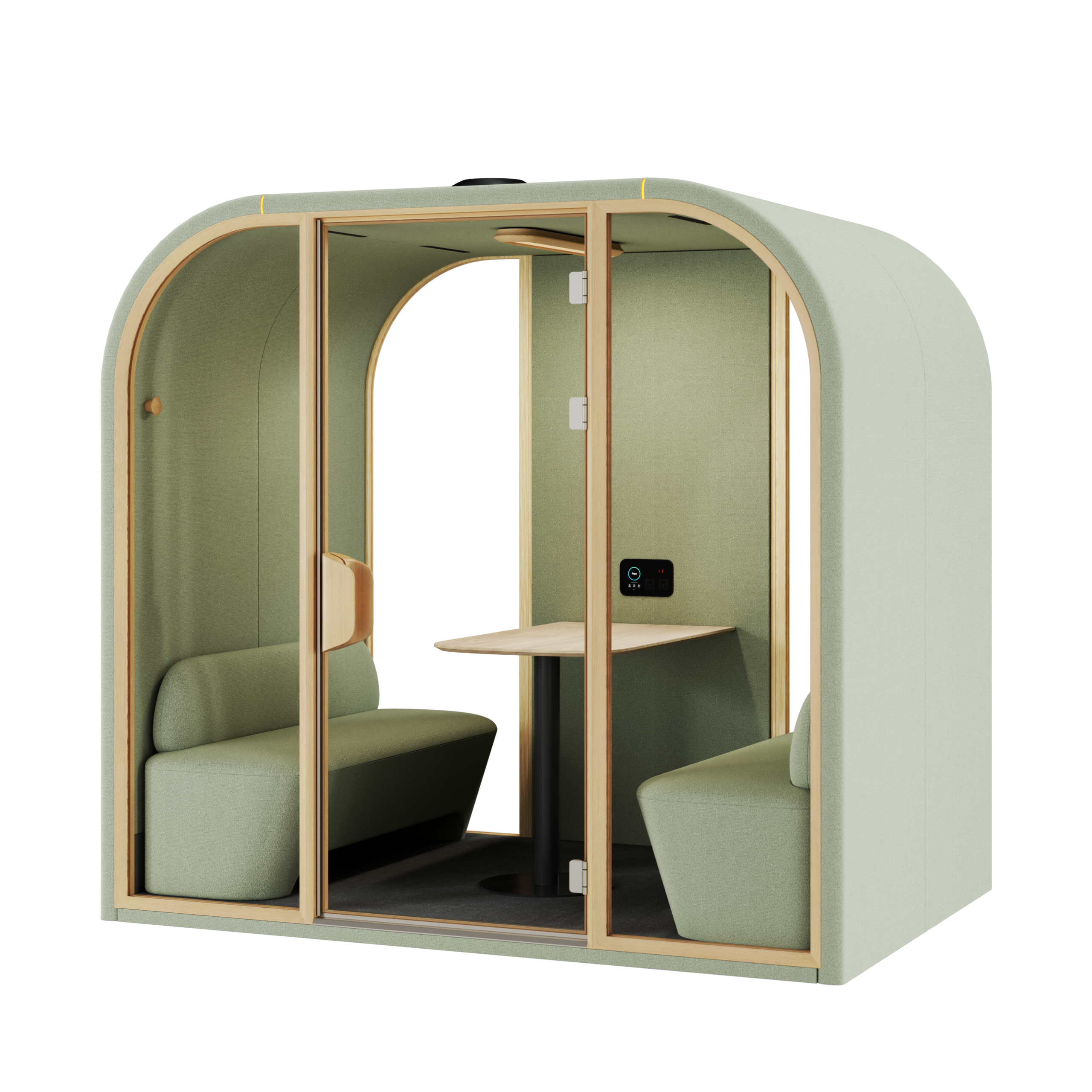

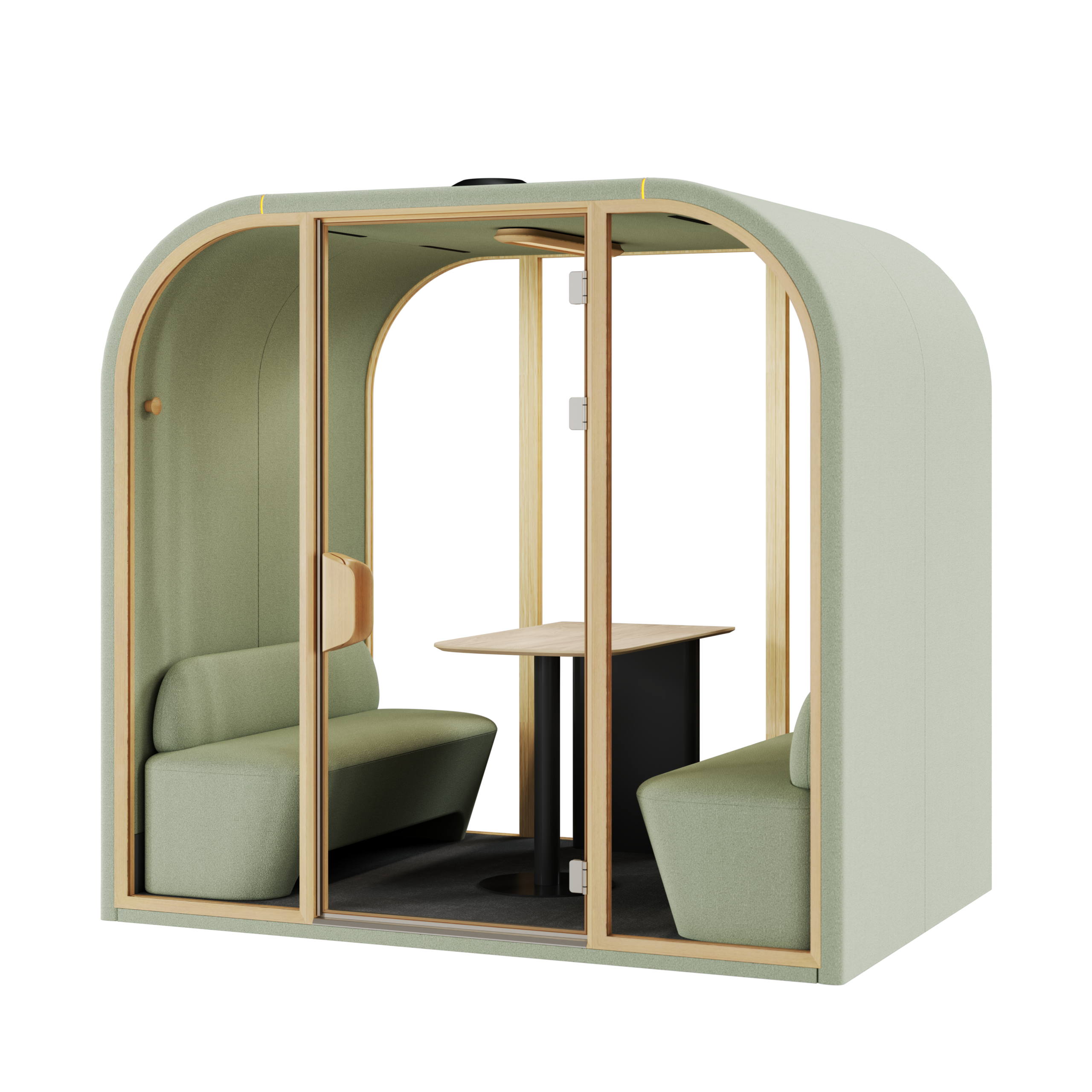

QUAD
Quad is a four-person pod that turns any open floor into an instant meeting room. It’s where collaboration happens in calm, conversations stay contained, and ideas can flow freely-undisturbed and undisturbing
-30.9dB
ISO 23351-1:2020
UL GREENGUARD
Gold Level
Exterior size:
W 2340 mm(92.13″)
D 1640 mm(64.57″)
H 2207 mm(86.9″)
Interior size:
W 2160 mm(85.04″)
D 1560 mm(61.42″)
H 2005 mm(78.9″)
Door passage:
W 821 mm(32.32″)
Floor area:
3.84m² (41.33ft²)
Capacity:
For 4 person
Power:
Maximun 60W
Power Outlet:
5 Hole universal outlet X 2
USB TypeA X 1
USB TypeC X1
Acoustic:
30.9dB, Class A in ISO 23351
Lighting:
3000k-6000k, adjustable,
0-1800lm ,CRI> 90,luminance on table top at standard >400 lux, flicker-free
Ventilation:
121 I/s, 436m³/h (256cu.ft) Auto-refresh:≈5 min after every 30 mins at standby
- Our standard office pods can be manufactured and shipped within 20 days.
- Custom models take 30 days to manufacture.
- Office pods arrive in 6-8 weeks and are shipped in a secure box.
- Contact info@hecorbooth.hk for expedited shipping options.
ARC meeting pod
Four‑person quiet booth for team brainstorming, group discussions.
Fabric
Table top
Carpet
Door handler/Cloth hook/lamp frame
All-in-One Controller

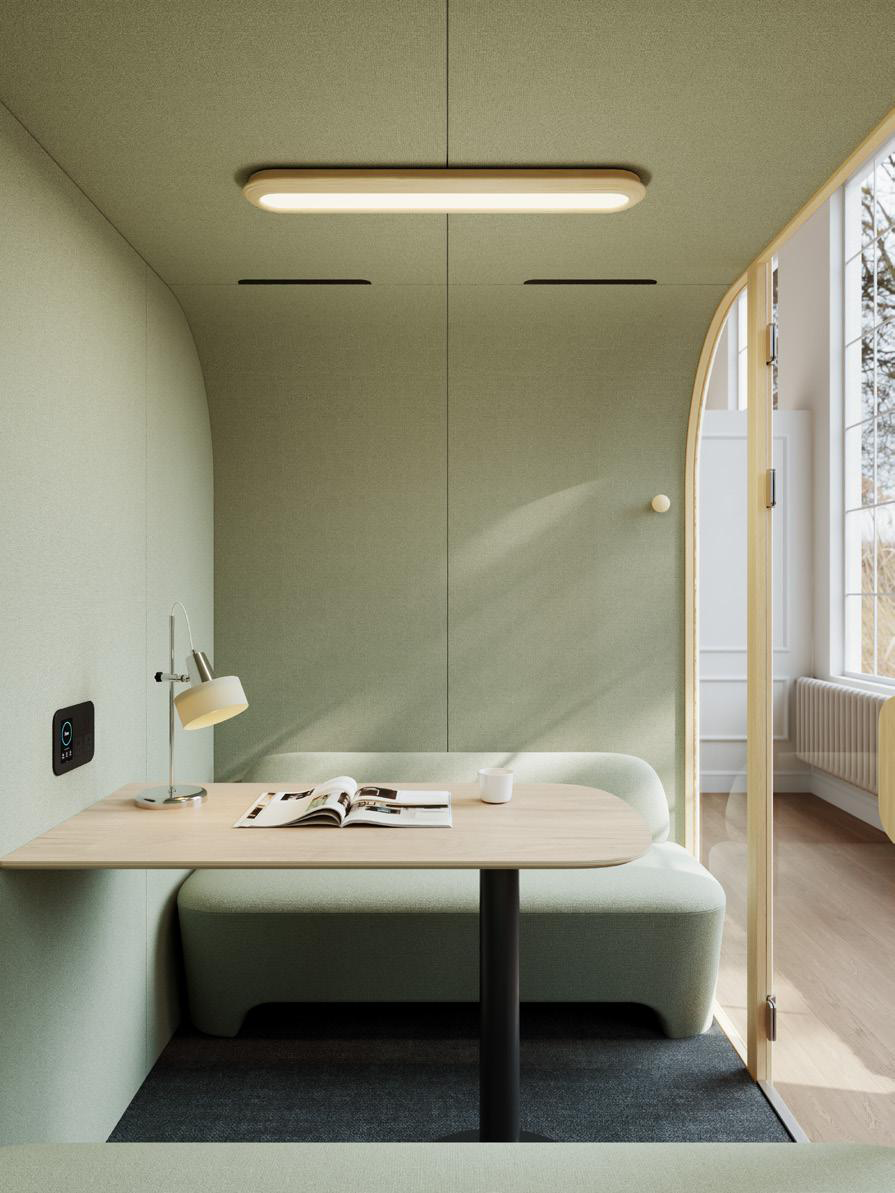

The integrated touchscreen control panel puts comfort at your fingertips. Effortlessly adjust the fresh air ventilation system, including fan speed, to suit your preference. You can also fine-tune the lighting by controlling both brightness and color temperature, creating the ideal atmosphere for focused work, relaxation, or virtual meetings—all with a simple touch.
arc meeting pod
Create a private meeting zone in open offices. Premium sound insulation, efficient air circulation, integrated lighting & seating. Perfect for team brainstorming, group discussions and confidential conversations.

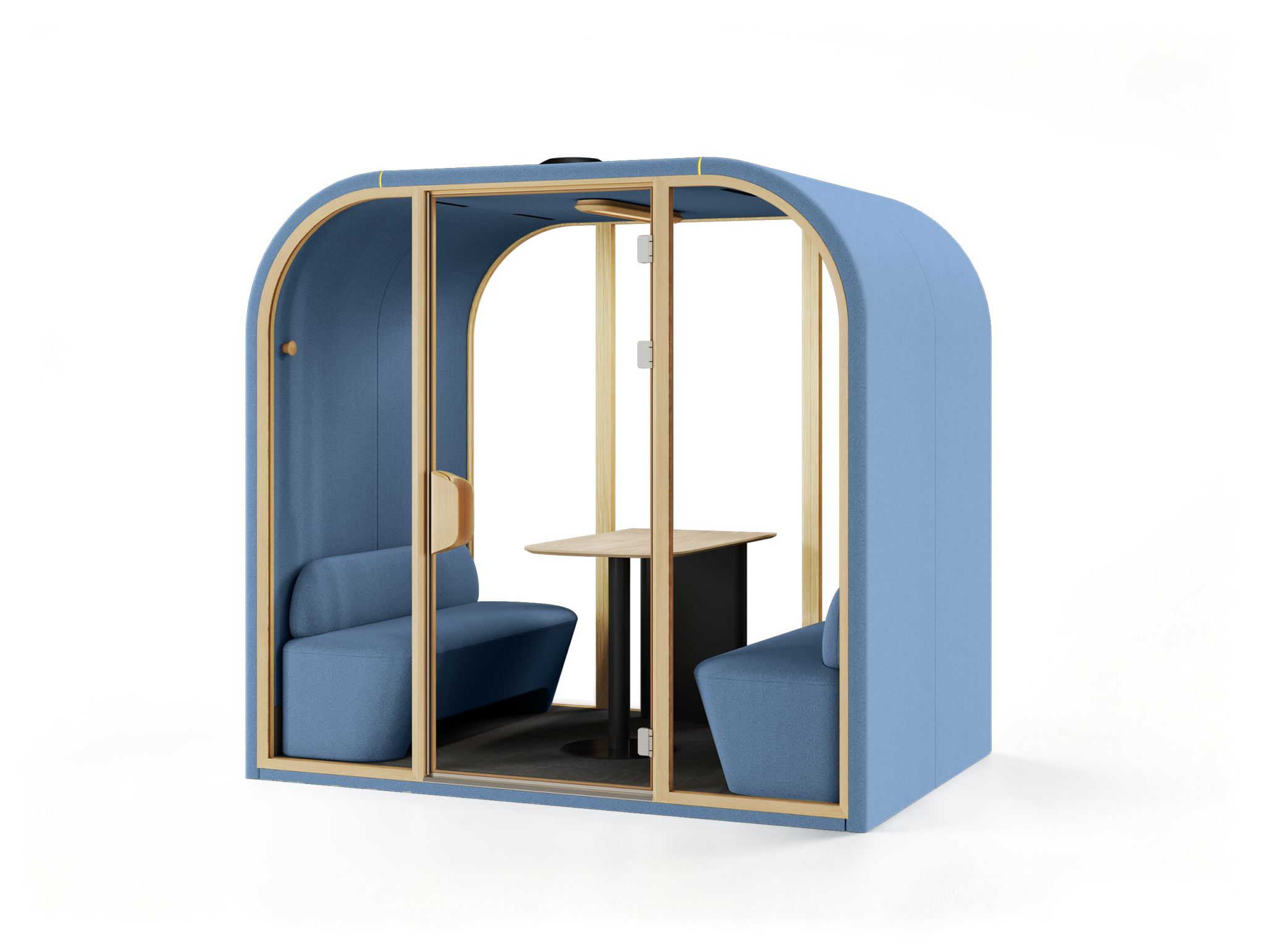

unlimited styling possibilities，Multiple Interior Options
Tailor your acoustic pod aesthetics with three distinct back panel options. Excellent noise reduction, soft fabric cladding,built-in ventilation and ambient lighting. Craft unique private team spaces that fit your office aesthetic perfectly，Create consistent or varied quiet zones across your office space.
Acoustic Excellence
Inside and Out
ARC Pod is thoughtfully designed with premium acoustic materials: multi-density layered walls, PVB laminated glass, PET acoustic felt and PU acoustic foam, delivering reliable sound insulation inside and out. It creates a calm, private workspace in the noisiest open environments. Whether you’re on a crucial call, deep in creative thought, or seeking quiet, ARC offers a distraction-free zone built for focus and productivity.
Occupancy Lighting
Orange = occupied, no disturbance
Blue = vacant， available for use
